Product Code : 12VDC200
Brand Name : Kelly controllers
Product Description

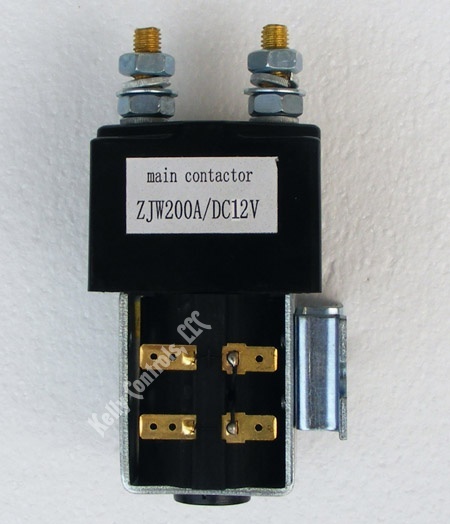

Main Contactor ZJW 12VDC Coils 200Amps



Main Contactor


We provide high quality Main Contactor.

Contact Ratings
Contact Form 1H
Contact circuit Voltage and loading current(resistant) 12VDC Max 200A
20+-5C cold state max motion voltage(VDC) Pick-up <=70% of rated voltage
Drop-out 5%-30% of rated voltage
Machanical life(Min.) 100,000 Ops
Electrical life(Min.) 50,000 Ops

Coil Ratings
Max coil current under the rated voltage 1.5A
With 20+-5C cold state starting coil max current

Specification:
Insulation Resistance 100Mohm Min.
Dielectric strength Between Contacts 2000VAC.
Between coil and contacts 1500VAC.
Environment temperature and attitude -40C - +85C; 0-20000m
Max relative humidity 98%
The shocking of fixed point 1 Frequency(11Z) 10-200
Acceleration(g) <3.5
Shocking Speed(time/min.) 60-100
Acceleration(g) 4
Constant acceleration 8
Operation regulation Continue

Installation direction Random.
